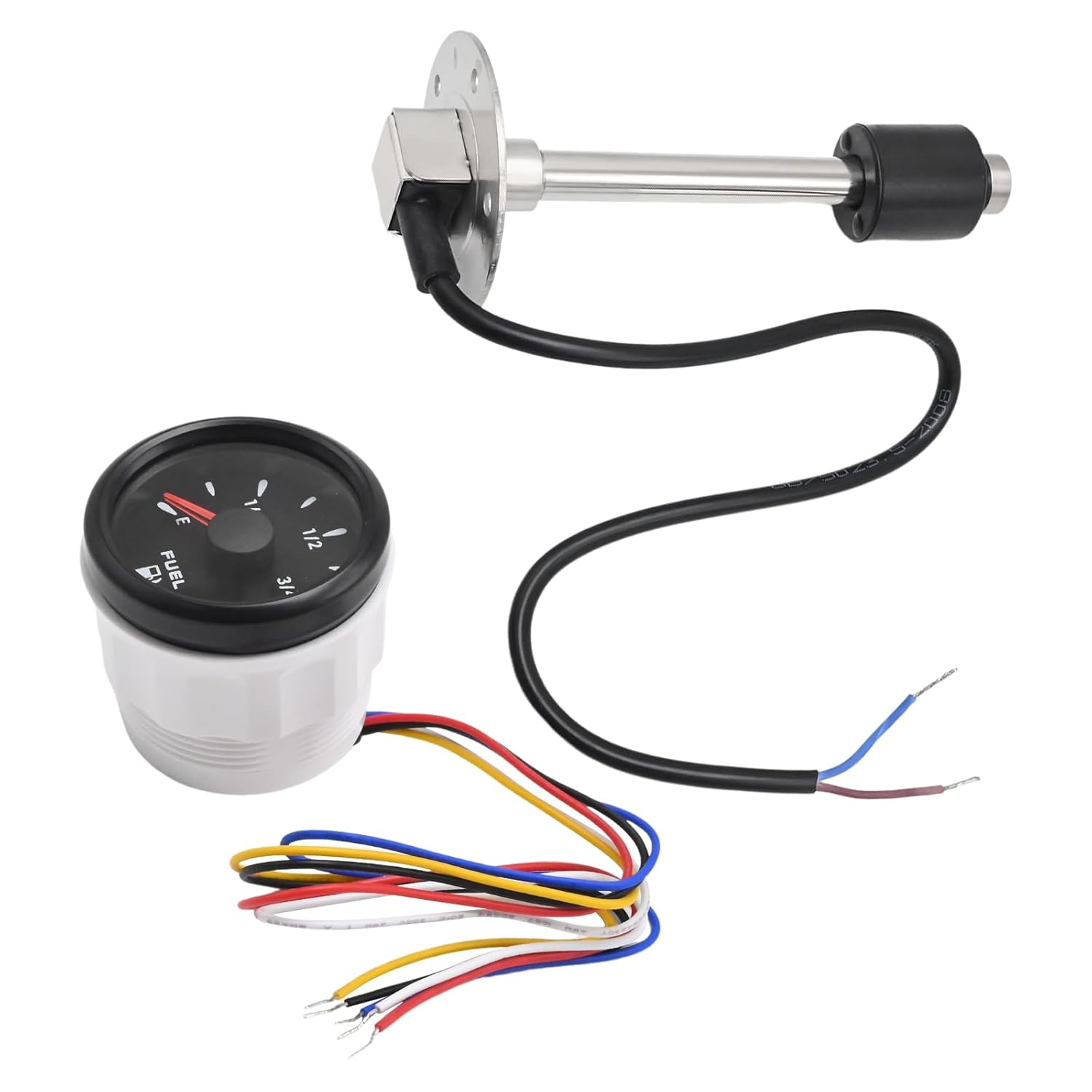

Anxingo Marine Fuel Sending Unit and Gauge Kit 240-33 ohm 6"(150mm), SUS316 Stainless Steel Fuel Water Level Sender Unit and Gauge, Replace for Boat Truck RV

Specification: Operating voltage: 9-32V DC Signal Output: 240-33 ohms(240 ohms at empty, 33 ohms at full) Material: 316 stainless steel Indication range: E~F Ingress protection: IP67 (waterproof and dustproof) Measuring range: 0-190Ω (adjustable) Mounting: Threaded flange mounting Connection: Quick terminal Operating temperature range: -40°C to +85°C Install diameter: Φ52mm or 2-1/16'' Application: Support Fuel Level Gauge and Water Tank Gauge for Boat, Truck, RV, Car etc. Package Includes: 1 x Fuel Sender 1 x Fuel Gauge 1 x Gasket 5 x M5*0.8 Length(16mm) Screws 4 x of Quick Wiring Terminals

• Smooth Reading: Design based on magnetic technology eliminates the need for a floating arm and dramatically reduces reading fluctuations caused by shaking. Reliable switches and fixed resistors ensure accurate indication of fuel level
• Multiple Meter Compatibility: The transmitter's non-linear output design allows it to be compatible with standard meters and adapt to different types of fuel and water level measurement needs, increasing flexibility of use
• Adjustable Backlight: Provide 8 optional backlight colors, clearly visible during the day and brighter at night, able to match with the vehicle instrument lights to enhance the personalized style of the interior and visual effect
• IP67 Waterproof Rating: IP67 rated to ensure reliable operation in a variety of environments, suitable for a wide range of applications such as boats, trucks and RV's, increasing the durability of the unit
• Simplified Electrical Connection: Equipped with quick connect terminals to simplify the electrical connection process, you can easily complete the installation, reducing the reliance on specialized skills
